RIK0026B
Two, Dual SPDT RF Switch Modules
The RIK0026B Kit consists of two, dual SPDT RF switch modules, for a total of four SPDT switches. The switches are attached in the test fixture by standard 3M double sided adhesive tape.
Figures / Tables:
- Figure 1 : Physical representation of the Switch Top Side view.
 - Table 1 : Pin Out
 - Table 2 : Typical Performance
 - Figure 2 : RF Default Conditions
 - Figure 3 : Insertion Loss Measurement.
 - Figure 4 : Isolation Measurement / Active to Inactive Port.
 - Figure 5 : Isolation Measurement / Common to Inactive Port.
 - Figure 6 : Common Port Return Loss
 - Figure 7 : Active Port Return Loss

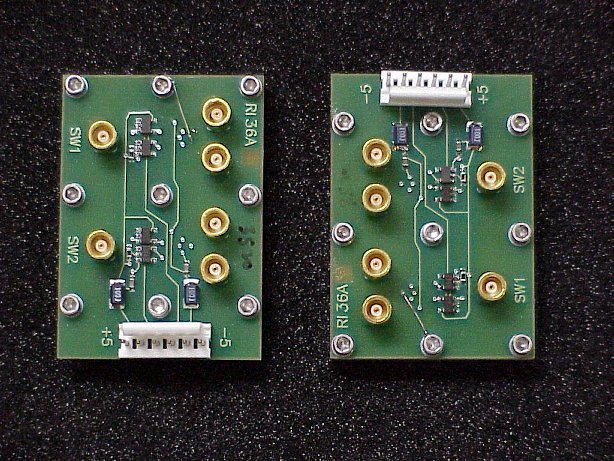

 - Figure 8 : Picture

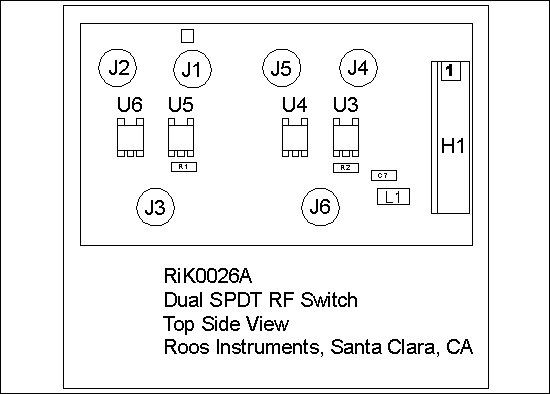

Figure 1
Physical representation of the Switch Top Side view
| Description |  Connection  |  Type  | Notes  |
| +5V Supply | H1-7,8  | Header Pin  | |
| -5V Supply | H1-1,2  | Header Pin  | |
| Switch 1 Control | H1-3  | Header Pin  | High=NC, Internal Pull Up  |
| Switch 2 Control | H1-6  | Header Pin  | High=NC, Internal Pull Up  |
| Ground | H1-4,5  | ||
| Switch 1, Pole | J3  | MCX Female  | DC Coupled  |
| Switch 1, NC | J1  | MCX Female  | DC Coupled  |
| Switch 1, NO | J2  | MCX Female  | DC Coupled  |
| Switch 2, Pole | J6  | MCX Female  | DC Coupled  |
| Switch 2, NC | J4  | MCX Female  | DC Coupled  |
| Switch 2, NO |  J5  |  MCX Female  | DC Coupled  |
| Current Drain +/-5V ALL CBITS HI | 100uA Max  |
| Current Drain +/-5V 1 CBIT LOW | 500uA typical  |
| Current Drain +/-5V 2 CBITS LOW | 1mA typical  |

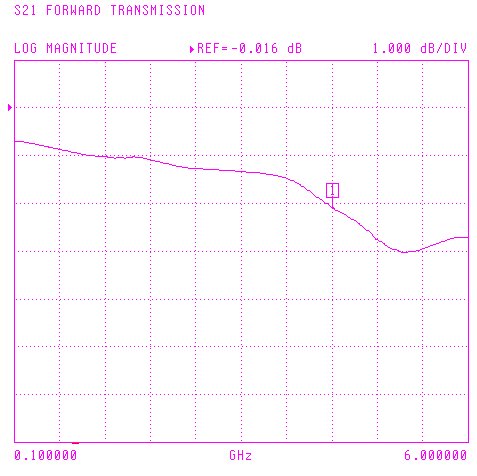

| Insertion Loss (Activated) | Fig. 3  |
| Minimum Freq. | DC  |
| Max Freq. | 6GHz  |

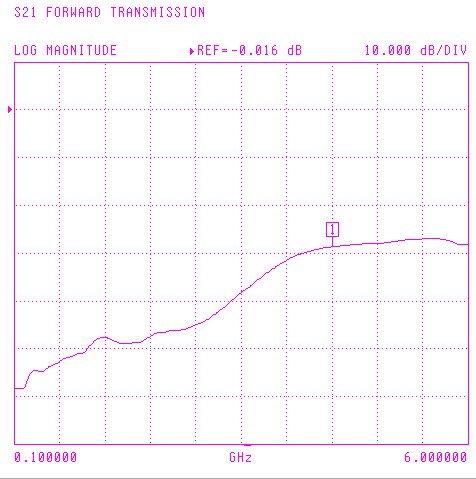

| Isolation / NC to NO | Fig. 4  |

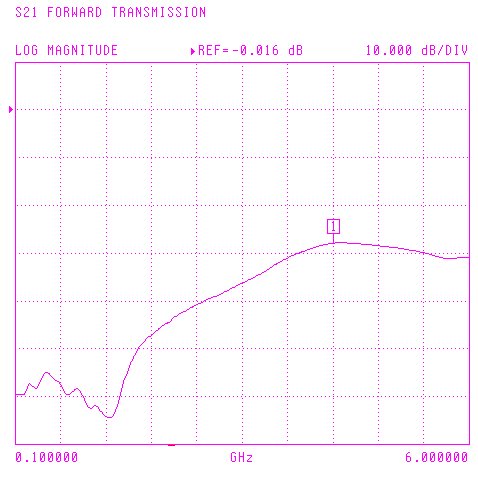

| Isolation / Pole To Inactive | Fig. 5  |

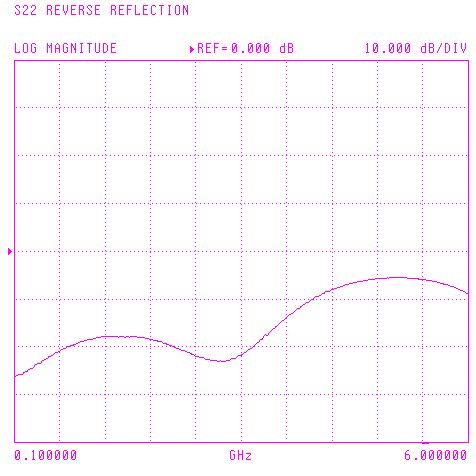

| Common Port Return Loss | Fig.6  |
| Active Port Return Loss | Fig.7  |
| 2nd Harm @13dBm Pin 880MHz | 60dBc  |
| 3rd Harm @13dBM Pin 880MHz | 65dBc  |
Table 2
Typical Performance
Bench Top DC Voltage Requirements:Typical Performance
+5V / -5V < Figures / Tables >

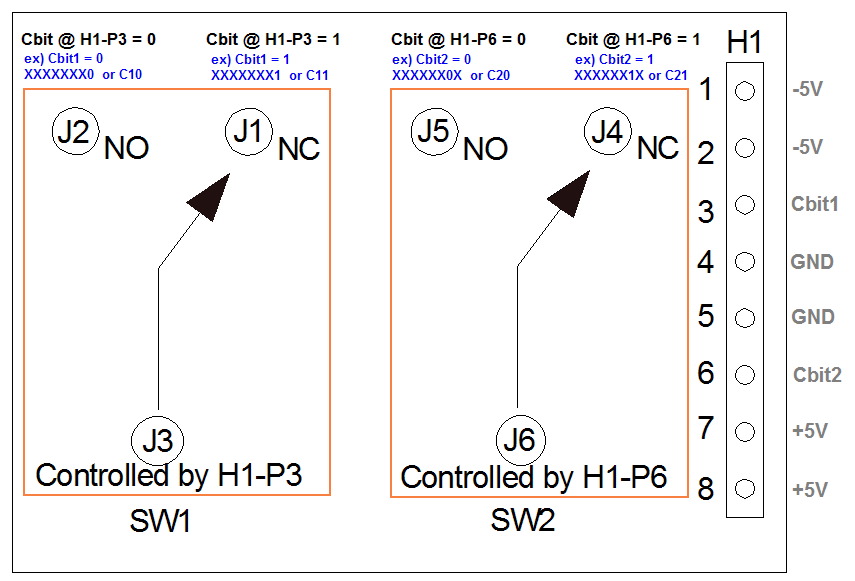

Figure 2
Default Settings
Assuming CBIT 1 is connected to H1-P3 and CBIT 2 is connected to H1-P6 the following is true.
Switch control string for SW1: NO = XXXXXXX0 or C10, NC = XXXXXXX1 or C11
Switch control string for SW2: NO = XXXXXX0X or C20, NC = XXXXXX1X or C21
X = don't care
1 = CBIT pulled high
0 = CBIT pulled low
NO = normally open
NC = normally closed< Figures / Tables >
