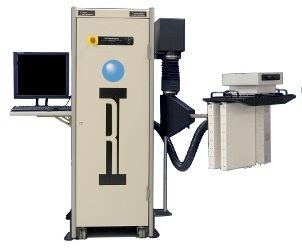

Cassini Infrastructure (RI8556A)

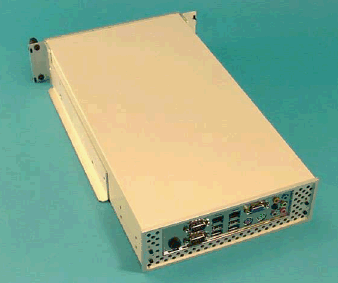

Includes Rack, Testhead, Manipulator, System Controller, Power Supplies
Test Head Configurations
Typical Testset TIM (Tester Instrument Module)
4 ports
External CW Synthesi
External DMSG
External Receiver
20 GHz RF Testset
Same Hardware as RI7100A RF
Testset TIM (RI8545A)
Receiver (RI8553A)
Receiver (RI8553A)
Source and Amp Attenuator Picture (RI8555A)
Source and Amp Attenuator Block Diagram (RI8555A)
