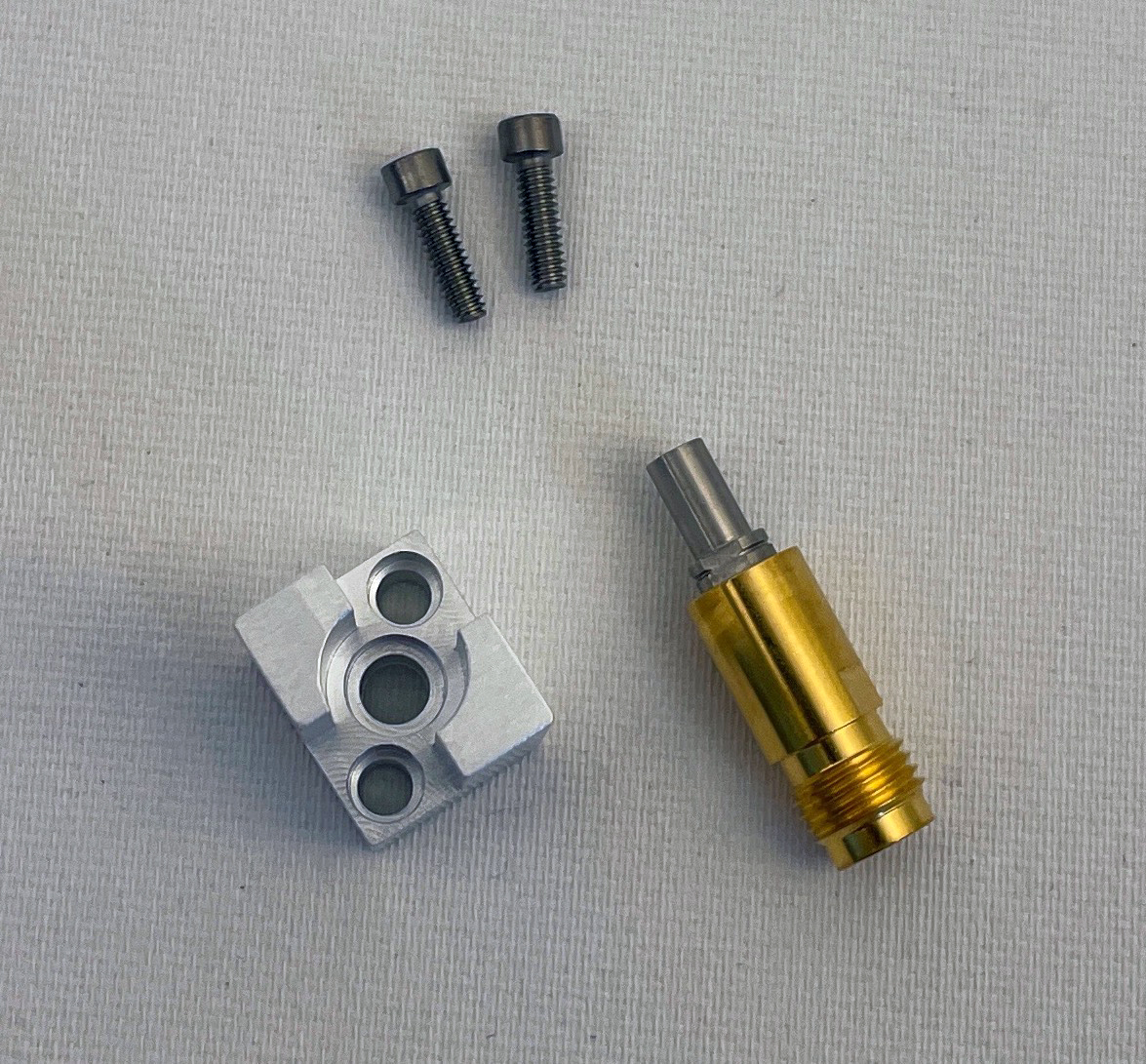

Engage RF Insert, 50 GHz SSMP-2.4mm Cal

Calibrate Fixture side of resource pair. Requires RIK0316A SSMP Launch. Frequency to 50 GHz to Top Hat. Power up to CW 100 Watts.

Part Number: RIK0375A

In Stock: 0

Estimated Restocking Time: 4-6 weeks

$700
NOTE: Thread-locking fluid (RIK0204A) should be applied to screws.

Used to provide precision alignment for GPPO Male to SMA Jack adapter to calibrate the Fixture path in place of a RIK0316A or RIK0232A SSMP (aka GPPO) launch.

Place this alignment block on top of the Fixture Insert RIK0316A or RIK0232A .


Contact Support for assembly instructions.
BOM Refreshed:05/11/2020 06:25 PM
