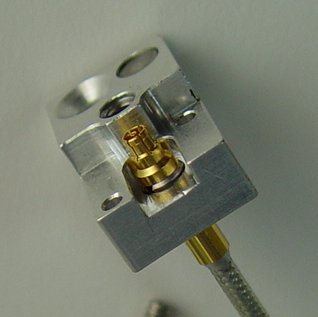

RIK0217C: Matrix RF Insert, 20 GHz SSMP (Fixture Side)

No New Designs

Fixture side of resource pair. Requires RIK0216A SSMP Connector. Frequency to 20GHz. Power up to CW 100 Watts.

Part Number: RIK0217C

NOTE: Thread-locking fluid (RIK0204A) should be applied to screws.

Bottom and TOP shown installed.


Board Bottom (RIK0216A)	Fixture Top (RIK0217C)

Matrix Top Plate RF Interfaces

SSMP Connector Installation

For Calibration buy this

Item	Ref	Part Number	QTY	Description	Category	Qty in Stock
1		MH3FNL1A	1	SCREW, FLAT PHIL, 4-40 X 1/4",100° SS, w/patch	Hrdwr
2		MT01M76B	1	ssmp floating platform*	MscAssy

BOM Refreshed:05/11/2020 06:27 PM

RIK0217C
