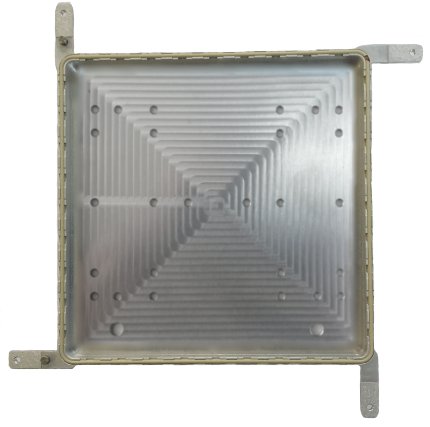

RIK0215A: QuickLock, Pedestal Support

LIMITED AVAILABILITY

This item will not be restocked when depleted and should be avoided for new designs.
View RIKs with Limited Availability for a complete list.

Suggested Replacement: RIK0239A

Expiration Reason: Seiko Epson and Pin Aligned compatible handlers

Aditional replacements may be found by searching for RIK0215 (change the REV letter) or QuickLock, Pedestal Support.

Mounts to QuickLock Top Plate

Part Number: RIK0215A

Estimated Restocking Time: Limited Availability: 12+ weeks

Provides mounting and physical support for Pedestal(s). and mounts to the DUT Clamp.

Requires Quick Lock RIK0214A Top Plate.

Does NOT support Pin Aligned handlers.

Search:

Item	Part Number	QTY	Description	Category
1	ARYL1A5A	1	RIK0215A Label Package.PDF (Sheet of 6)	Dcmnt
2	MA662W1A	12	Conductive Elastomer round .071Dia for Fixtures	MchCmp
3	MNUP706B	1	Assy DOC for RIK: 0213 0240 0214 0215 0216 0217	Dcmnt
4	W1MFCGXB	2	Pin pedestal align	MchFb
5	W1MFFGWA	1	PED Suport single QL	MchFb

Showing 1 to 5 of 5 entries

BOM Refreshed:05/11/2020 06:23 PM

RIK0215A
