LIMITED AVAILABILITY

This item will not be restocked when depleted and should be avoided for new designs.
This product entered limited availablity on 08/28/2019. View RIKs with Limited Availability for a complete list.

Suggested Replacement: RIK0178B

Expiration Reason: Improved ridgitity provides better platform for holding preceise calibration equipment for mmWave equipment.

Aditional replacements may be found by searching for RIK0178 (change the REV letter) or Fixture Bottom Plate, Cassini 16 slot, Basic Assembly .

No New Designs

Fixture Bottom Plate, Cassini 16 slot, Basic Assembly

Hard Dock, Standard 16 TIM, Cal & Characterization

Part Number: RIK0178A

In Stock: 0

Estimated Restocking Time: 12+ weeks (limited)

$890
DO NOT use this for new Designs.

Suggested Replacement: RIK0178B

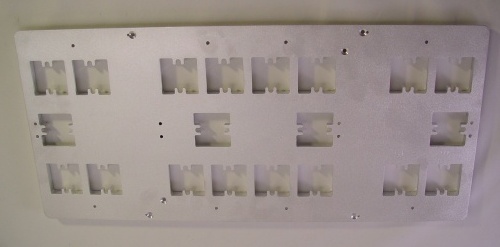

1st Image: Bottom Plate

2nd Image: Hardware

3rd Image: Assembled

Standard bottom plate assembly used on the Cassini 16 Test Head. This Bottom plate can be used as a Soft-dock solution with TIM blocks to connect Evaluation Boards or it can be used with Sides and a Top Plate, Carrier boards, etc. to form a complete Hard-dock fixture.


Related Documents:


Product Docs Fixture Assembly Steps - Cassini 16 with InTest Top Plate (RIK0178A, RIK0152B, RIK0164A)


Contact Support for assembly instructions.
BOM Refreshed:05/11/2020 06:23 PM
