LIMITED AVAILABILITY
This item will not be restocked when depleted and should be avoided for new designs.
This product entered limited availablity on 10/05/2012.
View RIKs with Limited Availability for a complete list.
Suggested Replacement: RIK0101A; RIK0102A; RIK0143B; RIK0159A; RIK0177A; RIK0200A; RIK202A
Expiration Reason: Split into separate RIKs for easy customization. 10/30RF Top Plate never made into a RIK.
Aditional replacements may be found by searching for RIK0096 (change the REV letter) or Fixture, Cassini 8-Port, 20/30RF.
Fixture, Cassini 8-Port, 20/30RF
RI7100A 20/30RF Top Plate with Cassini 8-Port Tester
Part Number: RIK0096A
In Stock: 0
Estimated Restocking Time: Contact Factory

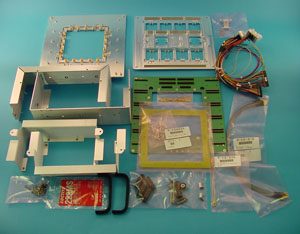

Includes Bottom plate (RIK0177A), Super Active Carrier (RIK0200A), 45 pogo pins/receptacles, Top plate (20 SMA) , side plates, and floating interface parts with hardware (RIK0159A)
2 RF blocks (RIK0143B)
2 Short semi-rigid cables & 2 Blocks(RIK0102A)
DC block w/2 harnesses (RIK0202A)
Also includes (RIK0101A).
Note: If the fixture is to be used with a Waveform module (or additional RF TestSets, etc), additional RF Blocks (RIK0143B) will need to be purchased separately.
Fixture Assembly Steps - Cassini (RIK0096A)
