Device Power Plus (DP,VM,VCC) TIM
DUT power and control
Part Number: RI8612A

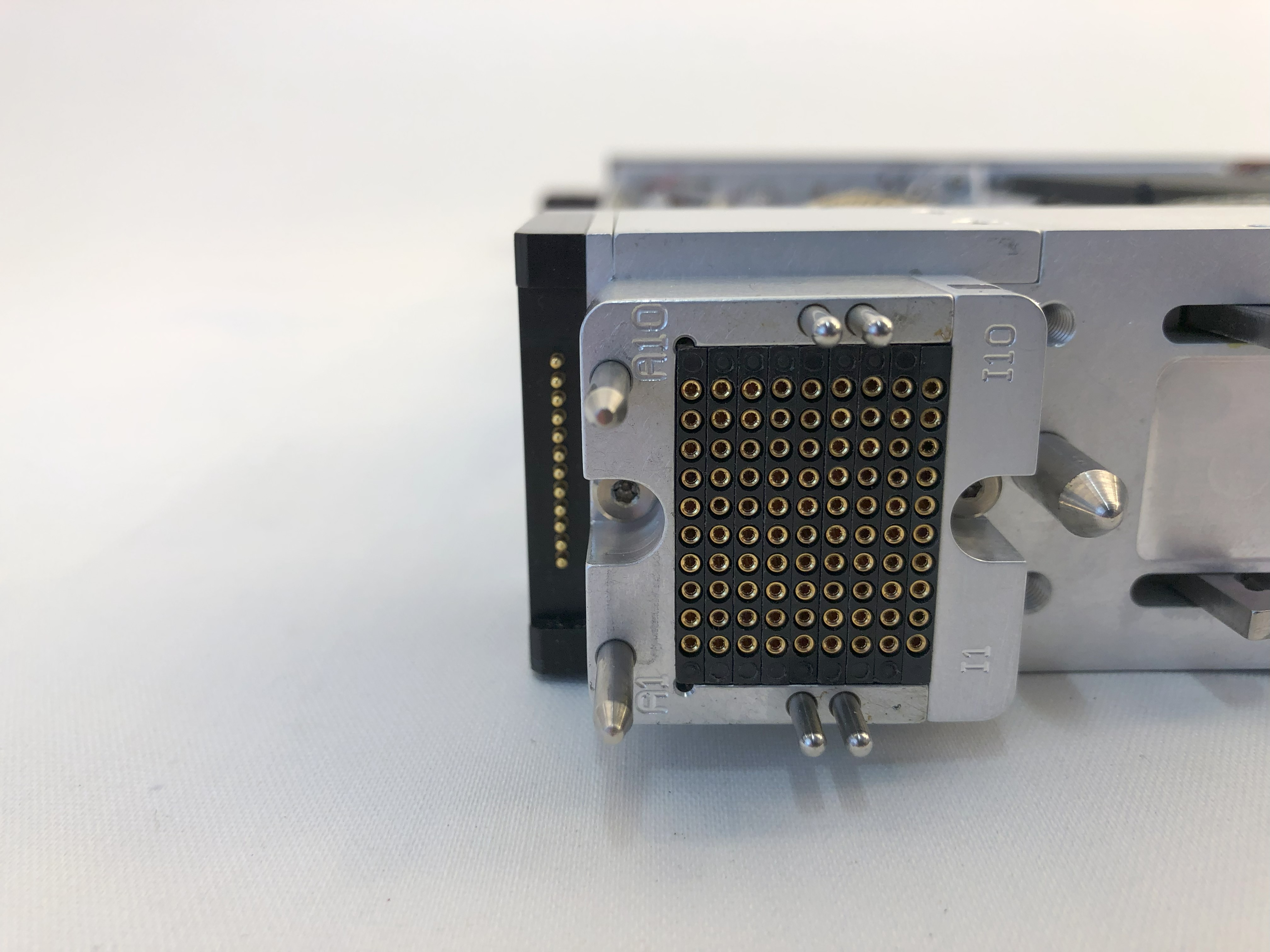

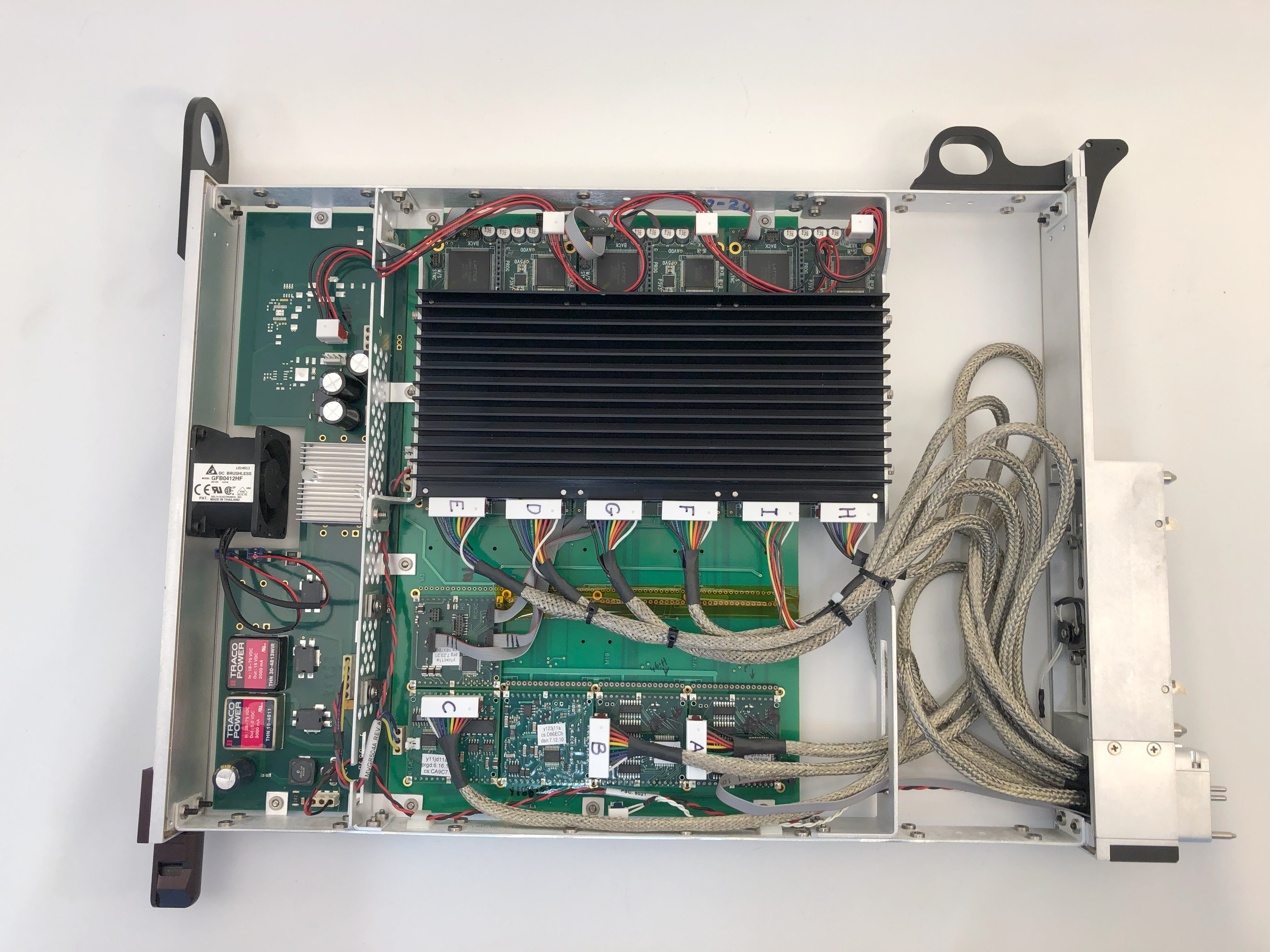

The RI8612 Device Power Plus Instrument provides enhanced precision voltage and current supply and parametric DC measurement in a single instrument. 24 high-current power supplies provide voltage and sense feedback for optimal performance in test applications. Eight voltage measure inputs can be configured for differential device applications or ground referenced multimeter measurements.
- 24 Power Supplies in 3 Banks of 8
- +/- 7v at 1.2A to +/-12.5v at 25mA Independent Sense Range (per Supply)
- 9.6A Max when Ganging Adjacent Supplies Together within an 8 supply bank
- +/-5uA Minimum Current Measure Range with a 1nA Resolution
- 150W Total Power (sum of all 24 supplies)
- 4 Voltage Measure Lines (compatible with RI8546)
- 16 Low Speed Static Digital for managing test circuit configuration (compatible with RI8546)
Model and Name as it appears in the Tester Configuration:
• DevicePowerPlus, Ri8612A
• DutControlPlus, Ri7431A
• StaticDigitalPlus, Ri74322A
RI8546 TIM Block Compatibility:
Ri74311A Static Digital "DB" (ROW A,B) Full HW and SW compatibility
DUT Control VM Lines (ROW C)
Not compatible with DB Lines (ROW D,E) or PowerVI (ROW H)
SUBJECT TO CHANGE
